Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: PASSION
  • Model Number: SO-P10F
  • Usage: Outdoor
  • Tube Chip Color: Full Color
  • Display Function: Video
  • Pixels: 20mm
  • Screen Dimension: led screen can be any size
  • Official Name: Outdoor LED Screen
  • Protection Grades: IP65-68
  • Outdoor LED Screen Brightness: 6000nits/6500nits/8000nits
  • Cabinet Material: Iron/Alumminum
  • Configuration: 1R1G1B/2R1G1B
  • Module Resolution: 16*16/16*8
  • Outdoor LED Screen Cabinet Resolution: 96*96/80*80/64*64/64*48/48*32
  • Refresh Rate: 300HZ/500HZ/50HZ
  • Performance: Very stable Outdoor LED Screen
  • PASSION LED Website: www.passion-ledlighting.com

Packaging & Delivery

Packaging Details outdoor led screen with flight case or wooden case packaging
[Contain 2,3 ,4 or 6 outdoor led screen cabinets according to the cabinets weight,size & customers requirements]
Delivery Time 10-25Days for outdoor led screen

Specifications

Outdoor LED Screen
*High color quality
*Excellent waterproof
*Durable & stable outdoor led screen
*With competitive price

PH20 High Quality Full Color Outdoor LED Screen

PASSION™ outdoor LED screen P10-25 uses intensive pixel pitch 10-25mm LED to suit for short viewing distance. In addition, the brightness is ultra high so as to suit for using in high ambient light environment. Outdoor LED screen PH10-PH25 is usually applied to bank, station, shopping street, cultural square, shopping mall advertising, ceremonies and transportation instruction, shopping malls, casinos, airports, retail centers, new dynamic outdoors billboard, entertainment, etc.

                           Variety            Thickness           Weight
Ordinary super thin indoor LED screen                   8    cm         18-25 kg
Super slim outdoor LED screen                                   11.5  cm         18-20 kg
Super slim indoor LED screen made by CNC              6    cm         6 - 9 kg
Die casting aluminum outdoor LED screen            11    cm         15-18kg

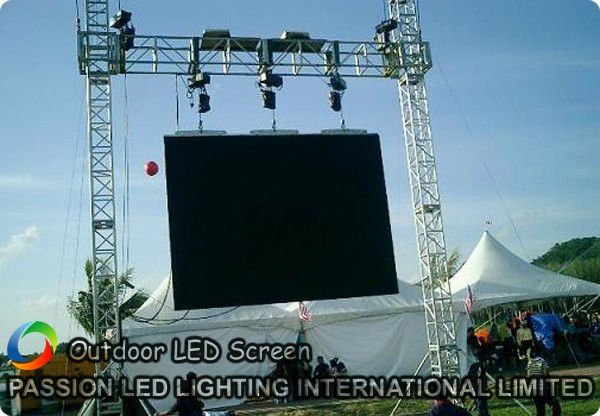

Outdoor LED screen board is completely integrated solution which includes LED controllable panels on each module, video Control System, rigging/stacking frame system, hidden cables, special designed flight cases. The sign display adopt an innovative Plug & Play technology, just functions as a huge monitor, so as to visualize any content in real-time.
Features:
1.High intensity and can be adjusted, so can meet the request of the customers according the application environment.
2.Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light
3.High reality,vivid color mixture,
4.Clear, exquisite and real display effect
5.Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion
6.Can repair each led lamps, so the cost of maintain is lower, and easy to repair.
7.Energy saving and environment protection.



PH20 High Quality Full Color Outdoor LED Screen
LED ModulePitch/mmPH8PH10PH12PH16PH20PH25
Module size/mm256*128160*160192*192256*256320*320200*200
Density of pixel/(dots/m2)15625100006944309625001600
Pixel composition1R1G1B1R1G1B1R1G1B1R1G1B1R1G1B1R1G1B
Led encapsulationDIP246DIP346DIP346DIP346DIP346DIP346
Resolution of module32 * 1616*1616*1616*1616*168*8
LED ScreenOptimum viewing distance8~75M8~100M10~100M15~140M20~160M25~200M
View angleH:±120°;V±60°H:±120°;V±60°H:±120°;V±60°H:±120°;V±60°H:±120°;V±60°H:±120°;V±60°
Average power consumption470W/sqm300W/sqm700W/sqm900W/sqm700W/sqm600W/sqm
Max power consumption1170W/sqm1000W/sqm300W/sqm300W/sqm300W/sqm250W/sqm
Module quantity3 * 6pcs6 * 6pcs5 * 5pcs5 * 4pcs4 * 4pcs5 * 5pcs
Size of cabinet/mm768*768960*960960*9601280X10241280*12801000*1000
Resolution of cabinet96*9696*9680*8080*6464*6440*40
Cabinet MaterialIron Cabinet (aluminum Cabinet)
Weight of cabinet36Kg55Kg55Kg75Kg95Kg60Kg
Driving method1/4 scan constant1/4 scan1/4 scan constant currentStatic constant currentStatic constant currentStatic constant current
currentconstant
 current
Frame frequency / Hz/S≥60
Refresh frequency/ Hz/S600~2000
Brightness7500cd/sqm7000cd/sqm6500cd/sqm7500cd/sqm6500cd/sqm6500cd/sqm
Operating temperature-20°C ~ +60°C
Storage temperature-40°C ~ +70°C
Operation humidity10%-90%
Storage humidity10%-90%
IP Rrating (Front/Rear)IP65/ IP54
Working vlotageAC110-220V/±10%
Grey scale/color depthdisplaying colors≥16.7M(synchronized); 14bits
Brightness adjustment256 levels of each color(manually)
Input signalRF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control systemlinsn/Colorlight/Nova(sending card,receiving cards and Hubs)
Average of non-failure life≥50,00h
Life span≥100,000h
Functionaless dot rate≤0.0001
Control distanceCAT cable: 100m;   Muti-mode fiber: 500m; Single-mode fiber: 15km

Outdoor LED Screen
