Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: PASSION
  • Model Number: SC-P3-10
  • Usage: slim full color indoor led display for video advertising
  • Tube Chip Color: slim full color indoor led display
  • Display Function: Video
  • Pixels: P3~10mm slim full color indoor led display
  • Screen Dimension: All size of indoor LED screen for customer
  • Official Name: slim full color indoor led display
  • Brightness: Indoor LED Screen>3000CD/Sqm
  • Features: Quick Installation/Thin and light
  • Protection Level: IP43-54
  • Indoor LED Screen Cabinet Material: Iron\Alumminum
  • Indoor LED Screen Certificate: EMC,CB,CE,CCC,FCC,RoHS
  • Contrast Ratio: 4,000:1 (at 500 lux)
  • Operating Temperature: -35 - 65°C
  • Performance: Very stable Indoor LED Screen
  • PASSION Company Website: www.passion-ledlighting.com

Packaging & Delivery

Packaging Details indoor led screen with flight case or wooden case packaging
[Contain 2,3 ,4 or 6 indoor led screen cabinets according to the cabinets weight,size & customers requirements]
Delivery Time Shipped in 20 days after payment

Slim Full Color Indoor LED Display With High Quality Product Technical Spes:



 LED ModulePitch/mmPH10
Module size/mm320*160
Density of pixel/(dots/m2)10000
Pixel composition1R1G1B
Led encapsulationSMD3528   3 IN 1
Resolution of module32*16
LED ScreenOptimum viewing distance8~40M
View angleH:±160°;V±120°
Average power consumption200W/sqm
Max power consumption500W/sqm
Module quantity3*6pcs
Size of cabinet/mm960*960
Resolution of cabinet96*96
Cabinet MaterialIron Cabinet (Aluminum Cabinet optional)
Weight of cabinet40Kg
Driving method1/8 scan constant current
Frame frequency / Hz/S≥60
Refresh frequency / Hz/S800~2000
Brightness1200cd/m2
Operating temperature–20C°~60C°
Storage temperature–40C°~70C°
Operation humidity10%-90%
Storage humidity10%-90%
IP Rrating (Front/Rear) IP54/ IP43
Working vlotageAC220V / AC110V  ±10%
Grey scale/color depthdisplaying colors≥16.7M(synchronized); 14bits
Brightness adjustment256 levels of each color(manually)
Input signalRF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control systemlinsn/Colorlight/Nova(sending card,receiving cards and Hubs)
Average of non-failure life≥50,00h
Life span≥100,000h
Functionaless dot rate≤0.0001
Control distanceCAT cable: 100m;   Muti-mode fiber: 500m;  Single-mode fiber: 15km

























Slim Full Color Indoor LED Display With High Quality Product Advantage:

1) Ordinary super thin indoor LED screen Thickness:8 cmWeight:18-25 kg

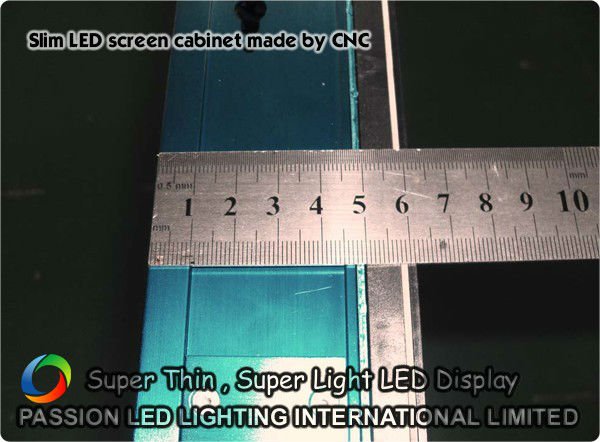

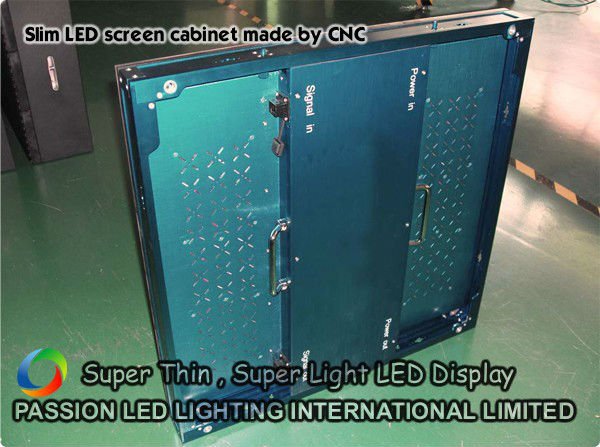

2) Super slim indoor LED screen made by CNCThickness:6 cmWeight:6-9 kg
3)Super slim outdoor LED displayThickness:11.5 cmWeight:18 to 20 kg



The indoor LED screen uses high-quality LED, which has high efficiency luminescence, decreased attenuation of brightness, high stability and reliability. Super uniformity in color. Low-budget, high pixel density, more vivid and stable pictures(No Flickering). The ultra-slim and ultra-lightweight structure, increased design opportunities and lower transportation costs. SMD technology takes super wide viewing angle for the LED display; better color performance, higher contrast ratio and higher refresh rate. The super thin indoor LED screen features low weight, special rigging system for simplified service, hassle-free mounting, easy configuration and maintenance, and several other enhancements that are unmatched in the industry.
Including: PH3.75, PH4, PH5, PH6, PH7.62, PH8, PH10.
Outdoor LED screen:
High-temperature spray technology: can greatly increase the capability of rust-proof. Use high efficiency switching power supply, reduce failure rate of power supply. Silica gel is filled and embedded on the front face of the display module, and the all-door structural design protects the display from water, dust, and corrosion. Special paint is applied to the screen circuit, thus protecting the screen from water, dust, and corrosion. IP65 rating, waterproof and dustproof. Module planeness: ≤ ±0.2mm. Flexible to work under complex and climate condition, can work normally in all harsh environment, such as strong wind, sandstorm, high temperature, low temperature, dryness, rainstorm, and so on. Long lifetime and low operating cost. The rental screen is extremely high product quality with brand new structure, and has easy installation and maintenance.
Including: PH10, PH12, PH16, PH20, PH25, etc.
Ideal for:
Music concerts; Fashion shows; Product launches; Theme parks; Media Facades; Advertising;Dancing Hall;Trade shows;Meeting Room;Marketplace;Square;Port.

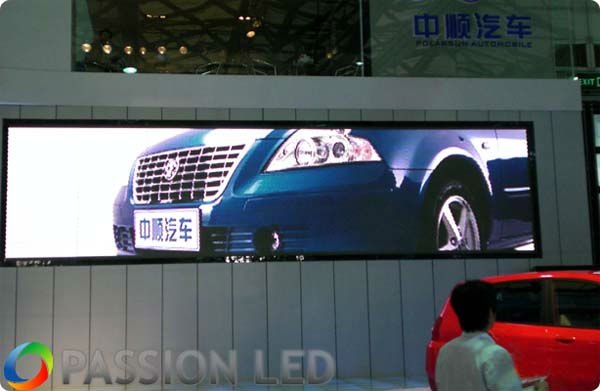

Slim Full Color Indoor LED Display With High Quality Product Project Cases:



Indoor LED Screen

Indoor LED Screen

Indoor LED Screen

Indoor LED Screen

Indoor LED Screen















Trading Terms

1. Payment: T/T , 30% deposits before production,the balance to be paid before delivery. (other payment can be discuss with salesman )
2. Production lead time : 20-25days.
3. Sample is avaliable in short time.
4. Best shipping freight are quoted under your requests.
5. Shipping port: Shenzhen, Mainland China















Packaging & Shipping

In order to ensure the safety of the products can reach you without damage, we recommend flight box and wooden cases to transportation.













Transportation Ways:   by air,  by sea  and  Express Company













Company Information

PASSION LED was founded in the year 2004, a professional led display manufacturer with dedicated R&D, quality control production, marketing and Project Engineering service. All of our led display, led screen, led video wall, led display panel,led display screen,led curtain display, led dance floor, led floor, flexible led display can be redesigned to suit your exact requirements,we will be happy to discuss your sign needs, and develop a completely bespoke display solution. All our products are wlecomed to your inquiry.

The R & D technology and the design of PASSION series LED display are technologies work for human. Based on this point,PASSION constantly advance designing and developing new LED products is also for more convenient in application.

A good LED  display product which can be accepted and applied widely by market must follow the rule of high quality/low price,PASSION ultra-thin LED display is such kind of product,which is absolutely different from other ultra-thin LED display.We use ultra-thin LED power supply, new circuit design,new overall structure plan,new lightweight cabinet materials and possess the LED modules with independent intellectual property rights ... so they are not only high quality but also with low manufacturing costs,which make quick installation and easy transportation with low light possible.



















Company Certification:


















Our Services

1. Your inquiry related to our products or prices will be replied in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires in fluent English .
3. OEM&ODM, any your customized screen we can help you to design and put into product.
4. Distributoer ship are offered for your unique design and some our current models .
5. Protection of your sales area, ideas of design and all your private information .

Your inquiry will be response within 24 hours!
