Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: PASSION RENTAL LED DISPLAY OUTDOOR
  • Model Number: R-P10F
  • Usage: Outdoor
  • Tube Chip Color: Full Color
  • Display Function: Video, animation, pictures, words
  • Pixels: 10mm
  • Screen Dimension: 600mmx600mm cabinet of rental led display outdoor
  • Pixel Pitch: 10mm
  • Density: 10000dots per sqare meter
  • Pixle Configuration: 1R1G1B
  • Brightness: More than 7500CD per sqare meter
  • Pretection Dgree: IP65
  • View Distance: 8 meters to 100 meters
  • Display Color: 687 million
  • Control Mode: Video Synchronous
  • Control Systerm: Popular led display systerm Linsn
  • LED Display Cabinet: Aluminium cabinet and Iron cabinet

Packaging & Delivery

Packaging Details Wood case/Flight case
[Contain 2,3 ,4 or 6 led display cabinets according to the cabinets weight,size & customers requirements]
Delivery Time Shipped in 20 days after payment

PASSION Style Slim Rental LED Display Outdoor With P10 Commercial Advertisng LED Display



Technical Specification:

 LED ModulePitch/mmPH10
Module size/mm160*160
Density of pixel/(dots/m2)10000
Pixel composition1R1G1B
Led encapsulationDIP346
Resolution of module16*16
LED ScreenOptimum viewing distance8~100M
View angleH:±120°;V±60°
Average power consumption300W/sqm
Max power consumption1000W/sqm
Module quantity6 * 6pcs
Size of cabinet/mm960*960
Resolution of cabinet96*96
Cabinet MaterialIron Cabinet (Aluminum Cabinet optional)
Weight of cabinet55Kg
Driving method1/4scan constant current
Frame frequency / Hz/S≥60
Refresh frequency / Hz/S600~2000
Brightness7000cd/m2
Operating temperature–25C°~65C°
Storage temperature–40C°~70C°
Operation humidity10%-90%
Storage humidity10%-90%
IP Rrating (Front/Rear) IP65/ IP54
Working vlotageAC220V / AC110V  ±10%
Grey scale/color depthdisplaying colors≥16.7M(synchronized); 14bits
Brightness adjustment256 levels of each color(manually)
Input signalRF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control systemlinsn/Colorlight/Nova(sending card,receiving cards and Hubs)
Average of non-failure life≥50,00h
Life span≥100,000h
Functionaless dot rate≤0.0001
Control distanceCAT cable: 100m;   Muti-mode fiber: 500m;  Single-mode fiber: 15km
PASSION Style Slim Rental LED Display Outdoor With P10 Commercial Advertisng LED Display

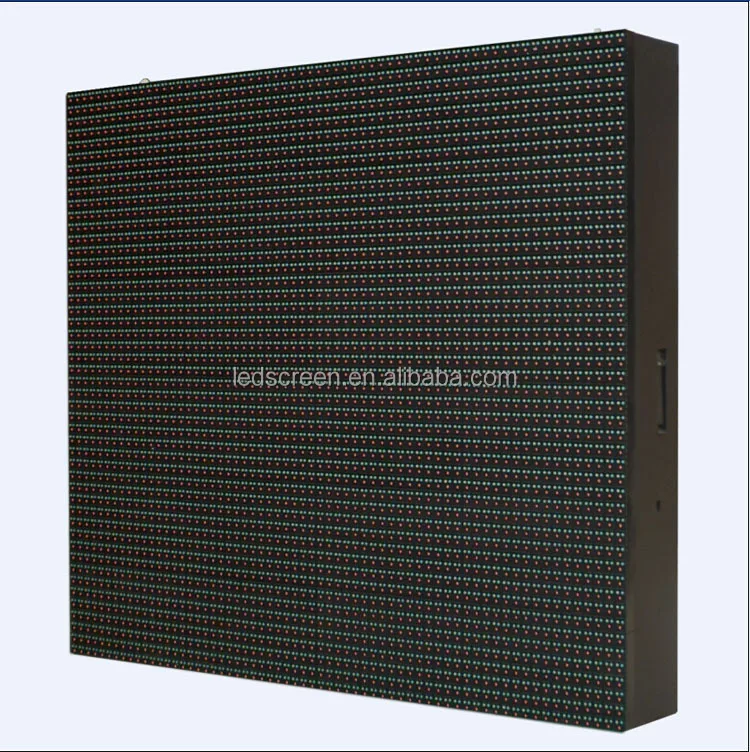

Cabinet Photoes 1:
PASSION Style Slim Rental LED Display Outdoor With P10 Commercial Advertisng LED Display
Cabinet Photoes 2:





Production Flow

Oriented the conception of light-weight, less-occupation, clear-viewing, the thickness of each cabinet is tailored down to 11.5cm, rental led display outdoor series is super thin and light-weight LED video display specially designed for rental or mobile use, as both backdrop applications and advertising billboard. The LED display outdoor adopting the supper thin, light power supply and electric fan, and super thin led display never occupy unnecessary room needed by other devices; and also never puts unnecessary weight to the mounting structures.
The super-bright SMD 3-IN-1 LED pixel configuration brings true possibilities of ensuring the image and video sharp, exquisite and brilliant enough for stage events, presentation, TV studio, etc.



♦ 2. Features:

The rental led display outdoor use ultra-thin LED power supply, new circuit design,new overall structure plan,new lightweight cabinet materials and possess the LED modules with independent intellectual property rights ... so they are not only high quality but also with low manufacturing costs, which make quick installation and easy transportation with low light possible.
Special paint is applied to the screen circuit, thus protecting the screen from water, dust, and corrosion. IP65 rating, waterproof and dustproof. Module planeness: ≤ ±0.2mm. Flexible to work under complex and climate condition, can work normally in all harsh environment, such as strong wind, sandstorm, high temperature, low temperature, dryness, rainstorm, and so on. Long lifetime and low
operating cost. The rental led  display is extremely high product quality with brand new structure, and has easy installation and maintenance.

♦ 3. Ideal for:
Music concerts; Trade shows; Fashion shows; Product launches; Theme parks; Media Facades; Advertising.








Technology

Module Specifications

Pixel Pitch

10mm

Pixel Configuration

1R1G1B

Module Resolution

16*16

Module Pixels

256

Module Size

160*160

Cabinet Specification

Pixel Density

10000

Average Power Consumption

500

Max. Power Consumption

1000

Cabinet Thickness

120mm/160mm

Material

Aluminum/Iron





Features

1. High quality LED chip and high anti-static electricity capacity.

2. Large viewing angle and smooth displaying provide excellent visual effect from every angle. High brightness led DIP lights, the brightness is more than 7000cd/m2, and the wavelength range is ±1.5NM, same batch the LED brightness rate is 1:1.2, 130 wide viewing angle.

3. The integration of lamp and driving IC,together with with the multi-circuit structure,achievs evenly-distributed current,low power consumption and fast heat dissipation.

4. Ultra high brightness,low attenuation,high reliability and weather ability.

5.High contrast ratio. High refresh rate (3000HZ), high gray level (14bit), can support 16 data processing, the picture clear fluid.

6. scientific cabinet design, good compatibility.
While designing, we uphold the concept of energy efficiency and environmental protection.Using the standardized cabinet, the cabinet can be convenient for Installation and maintenance in different environment, meanwhile the light, thin cabinet reduces The shipping cost.


7. Top protective function
The cabinet has good moisture-proof corrosion-resistant function, so the screen can be use in the beach where the air has high moisture and high salinity. The frontage of the screen is IP65.



♦ Slim rental led display outdoor weight:25kg/square meter, thickness:11.5cm





 outdoor led display - weight:25kg/square meter, thickness:11.5cm

 outdoor led display - weight:25kg/square meter, thickness:11.5cm

outdoor led display - weight:25kg/square meter, thickness:11.5cm

Outdoor led display - weight:25kg/square meter, thickness:11.5cm

Outdoor led display - weight:25kg/square meter, thickness:11.5cm





Company Information

PASSION LED was founded in the year 2004, a professional led display manufacturer with dedicated R&D, quality control production, marketing and Project Engineering service. All of our led display, led screen, led video wall, led display panel,led display screen,led curtain display, led dance floor, led floor, flexible led display can be redesigned to suit your exact requirements,we will be happy to discuss your sign needs, and develop a completely bespoke display solution. All our products are wlecomed to your inquiry.

The R & D technology and the design of PASSION series LED display are technologies work for human. Based on this point,PASSION constantly advance designing and developing new LED products is also for more convenient in application.

A good LED  display product which can be accepted and applied widely by market must follow the rule of high quality/low price,PASSION ultra-thin LED display is such kind of product,which is absolutely different from other ultra-thin LED display.We use ultra-thin LED power supply, new circuit design,new overall structure plan,new lightweight cabinet materials and possess the LED modules with independent intellectual property rights ... so they are not only high quality but also with low manufacturing costs,which make quick installation and easy transportation with low light possible.
