Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: PASSION LED Soft Curtain/Soft LED Video LED Curtain
  • Model Number: SC-P20-F512
  • Usage: Outdoor Soft LED Video LED Curtain
  • Tube Chip Color: Full Color LED Soft Curtain/Soft LED Video LED Curtain
  • Display Function: Soft LED Video LED Curtain
  • Pixels: P20mm LED Soft Curtain/Soft LED Video LED Curtain
  • Screen Dimension: All sizes of LED Soft Curtain/Soft LED Video LED Curtain for customers
  • Official Name: LED Soft Curtain/Soft LED Video LED Curtain
  • Brightness: 5000CD/Sqm
  • Moduel Size: 1.28*0.32m
  • Weight: 4.5KG
  • LED Configuration: SMD 3 IN 1
  • Pixel Density: 2500Pixel/Sqm
  • Screen Material: PC
  • Protection Level: IP65
  • Company Website 1: www.leddisplay-passion.com
  • Company Website 2: www.passion-ledlighting.com

Packaging & Delivery

Packaging Details LED Soft Curtain/Soft LED Video LED Curtain with wooden case packaging
[Contain 8 LED Soft Curtain/Soft LED Video LED Curtain cabinets according to the cabinets weight,size & customers requirements]
Delivery Time Shipped in 20 days after payment

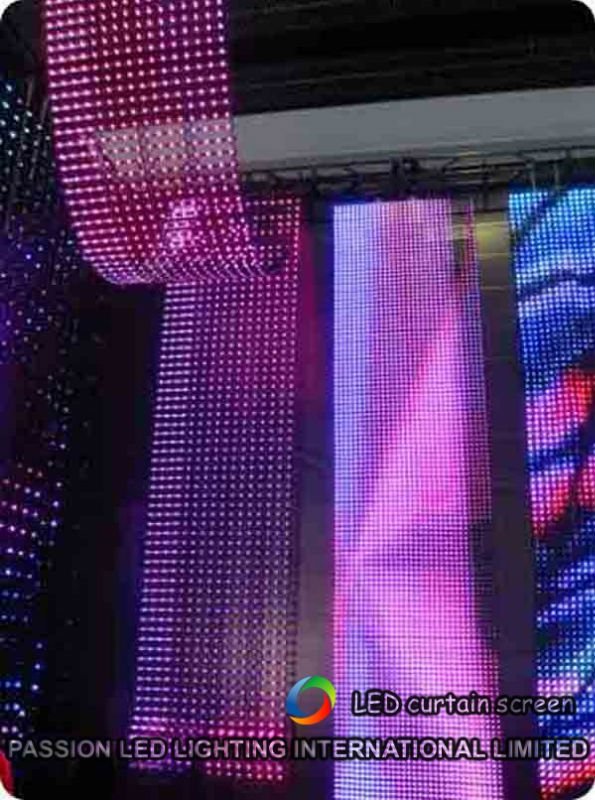

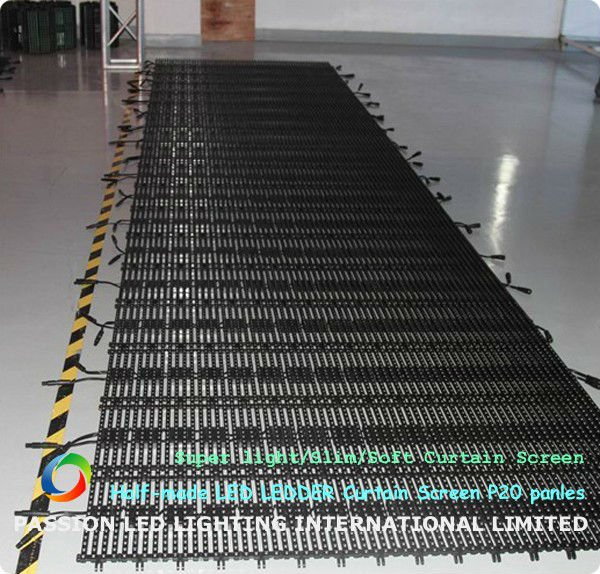

LED Soft Curtain/Soft LED Video LED Curtain

PASSION LED LEDDER Curtain Screen is the newest invention in market with most competitive prices and advantages than formal LED Display.


With LED Soft Curtain/Soft LED Video LED Curtain,we use very good material on this new products, such as: the world famous brand power connectors and signal connectors; Neutrik and ODU brand, with which we aim at the high end customer with good quality. I am sure this product will bring you many customers and will be much porpular. I hope it can bring customer more business.



LED Soft Curtain/Soft LED Video LED Curtain technical parameters:


Mechanical Specifications

Pixel Pitch:

 20mm

Section Resolution:

16*64,1024 pixel per Links

Brightness:

6000 CD/sqm

Viewing Angle:

120°Vertical 120°Horizontal

IP Rating:

 IP65

Transparency:

 45%

Connection:

 ODU 5 pin signal connection

 ODU 2 pin power connection

Size:(In inch):

50.39”*12.60”*1.22”

Size: (in MM):

1280*320*31

 Weight:

4.54kgs

Electrical Specifications

LED Type:

 LEDMAN SMD5050 3 in 1

Led Quantity:

 1024

Led Lifetime:

50,000hours

Power input:

110V or 220V

Power output:

DC 24V

Power Consumption:

240 Watts

Operating temperature:

 -10°C--+45°C

Operating Humidity:

70%

Refresh Rate:

300Hz

Grey Level:

65536 levels



LED Soft Curtain/Soft LED Video LED Curtain is advantage of:

Quick roll-out design, Funcitonal and stunning when quickly rolled out flat to create an even video display

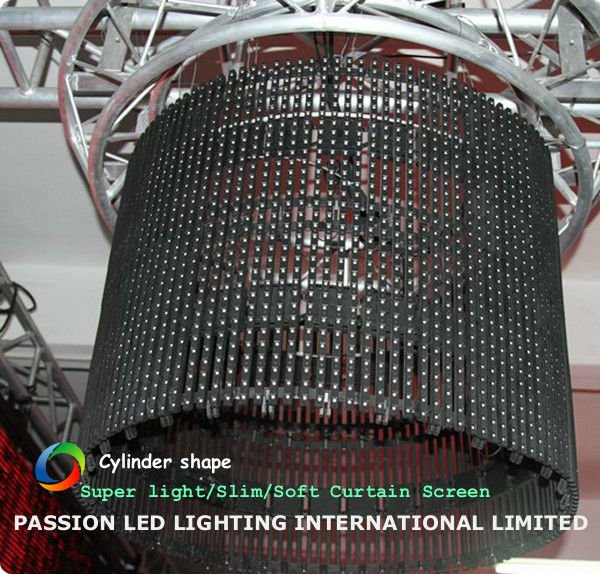

Can bend, wrap, drape, and fold to conform to even the most unusual shape and size

can be easily conduplicate 180 degree to form a double side LED curtain display screen

Flexible strip construction - Enables ultra fast installation/breakdown with minimal manpower

5,000 NIT light output - Delivers bright, high-impact, full-color video images

Slim and ultra-lightweight - Increased design opportunities and lower transportation costs

High transparency factor - Layer video and lighting effects

Ultra lightweight curtain has flexible configuration and easy installation and maintenance.

rain proof design and quality.

Durable and lightweight



LED Soft Curtain/Soft LED Video LED Curtain is ideal for:

Product launches\Fashion shows\Trade shows\Theme parks\Media Facades\Music concerts\Flying screen\Dance cafe visual stage\Be available to be combination between back ground and screen.



LED Soft Curtain/Soft LED Video LED Curtain

LED Soft Curtain/Soft LED Video LED Curtain
LED Soft Curtain/Soft LED Video LED Curtain
LED Soft Curtain/Soft LED Video LED Curtain
LED Soft Curtain/Soft LED Video LED Curtain
LED Soft Curtain/Soft LED Video LED Curtain
LED Soft Curtain/Soft LED Video LED Curtain
