Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: PASSION Indoor LED sign
  • Model Number: SC-P3
  • Usage: Indoor LED sign
  • Tube Chip Color: Full Color Indoor LED sign
  • Display Function: Video
  • Pixels: P3 Indoor LED sign
  • Screen Dimension: PH3 led sign
  • Official Name: Indoor LED sign
  • Brightness: Indoor LED sign>3000CD/Sqm
  • Features: Quick Installation/Thin and light
  • Protection Level: IP43-54
  • Indoor LED Display Cabinet Material: Iron\Alumminum
  • Indoor LED Display Certificate: EMC,CB,CE,CCC,FCC,RoHS
  • Contrast Ratio: 4,000:1 (at 500 lux)
  • Operating Temperature: -35 - 65°C
  • Performance: Very stable Indoor LED sign
  • PASSION Company Website: www.passion-ledlighting.com

Packaging & Delivery

Packaging Details Indoor LED sign with flight case or wooden case packaging
[Contain 2,3 ,4 or 6 indoor led display cabinets according to the cabinets weight,size & customers requirements]
Delivery Time 10-25Days for indoor led sign

Specifications

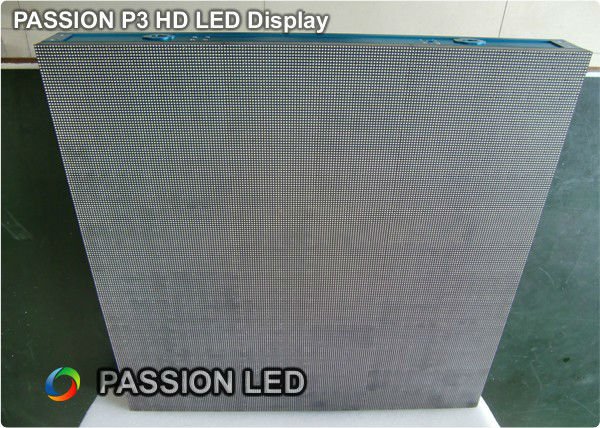

PH3 LED Sign
High resolution
With competitive price
Very stable led display
high color quality

PH3MM LED Sign Dispplay  Advantage:



PH3mm LED sign display is suitable for the television studio and digital stage background used, it



can show virtual images and color effects. In the field of art stage designing, the product performs



outstanding artistic charm with its unique feature of permeability,lightness and thinness.

----------------------------------------------------------------------------------------------------------------------------------------

It is for indoor Advertising, Mobile Media,Stage Background Display, Stadium Sports Living and



Bank and Station Info Media.The applications of our LED Display Systems are as following:



1. High-grade entertainment                2. Large-scale song and dance soiree



3. Fashion conference                  4. Outdoor advertising



5. Building wall decorations etc.



1) Ordinary super thin indoor LED display Thickness:8 cm Weight:18-25 kg
2) Super slim indoor LED display made by CNCThickness:6 cm Weight:6-9 kg
3)Super slim outdoor LED displayThickness:11.5 cmWeight:18 to 20 kg







Specification

NumberItemPh3 led sign display
1Pixel pitch3mm
2Size of  module192mm X 96 mm
3Resolution of module64 X 32dots
4Density of pixel111111dots/m2
5Pixel configuration1R1G1B
6Red wavelength625±2nm
7Green wavelength525±2nm
8Blue wavelength470±2nm
9Colors16777216
10Best viewing distance4-100m
11Viewing angle140°(H)/120°(V)
12Max  power consumption500-1100w/m2
13Brightness1000-1500cd /m2
14Gray scale16bits per color
15Color temperature5000~9300k
16Control methodSynchronization & Asynchronization
17Driving method1/16  scanning
18Frame frequency60Hz
19Refresh frequency350Hz
20Working voltageAC220V/110V±10%
21IP gradeIP20-IP54(adjustable)
22Working temperature-20°C~65°C
23MTBF>10000 hours
24Life span>100,000 hours
25Defects rate.≤0.00001(Led display line standard<0.0001)
26Computer operation system Win XP/Vista/ Win 2000/WIN7ect.
27Video signalRF, S-Video, RGB, RGBHV, YUV, YC.ect







Module Infomation:

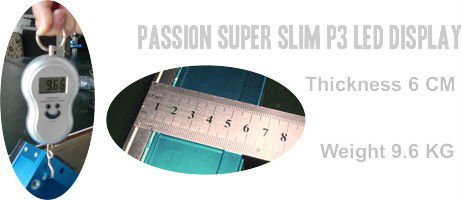

Super Light And Thickness Cabinet:













Super Light And Only 60mm Thickness

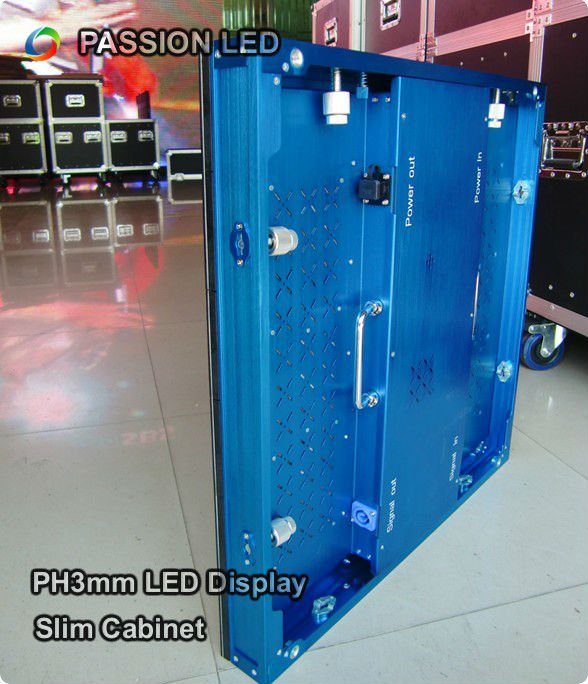

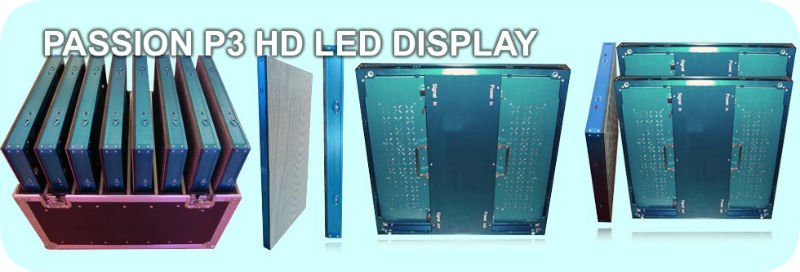

More cabinet information of PH3 led sign display
