Advertising Outdoor LED Display Board, Advertising Outdoor LED Display Screen, Advertising LED Display Panel

FOB Reference Price:Get Latest Price
US $300-500 / Square Meters | 5.53 Square Meter/Square Meters 6 cabinets or 5.53sqm (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
PASSION
Model Number:
PS-OF-PH10
Usage:
Outdoor LED Display Board, Outdoor LED Display
Tube Chip Color:
Full Color
Display Function:
Video
Pixels:
PH10mm Outdoor LED Display Board, Outdoor LED Display
Screen Dimension:
960mmx960mm
Official Name:
LED Display Board, LED Display screen, led display panel
Module size:
320mmx160mm
Pixel composition:
1R1G1B
Led encapsulation:
SMD3535
Optimum viewing distance:
8~100M
View angle:
H:±120°;V±60°
Average power consumption:
300W/sqm
Max power consumption:
800W/sqm
Cabinet Material:
Iron Cabinet (Aluminum Cabinet optional)
Weight of cabinet:
55Kg
Supply Ability
Supply Ability:
2000 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details
LED Display Board, LED Display screen led display panel with flight case and wooden case
Port
Shenzhen, China
Lead Time :
Quantity(Square Meters) 1 - 500 >500
Est. Time(day) 20 To be negotiated
Video Description



Product Description

Advertising Outdoor LED Display Board, Advertising Outdoor LED Display Screen, Advertising LED Display Panel Technical Specification:

 LED ModulePitch/mmPH10
Module size/mm160*160
Density of pixel/(dots/m2)10000
Pixel composition1R1G1B
Led encapsulationDIP346
Resolution of module16*16
LED ScreenOptimum viewing distance8~100M
View angleH:±120°;V±60°
Average power consumption300W/sqm
Max power consumption1000W/sqm
Module quantity6 * 6pcs
Size of cabinet/mm960*960
Resolution of cabinet96*96
Cabinet MaterialIron Cabinet (Aluminum Cabinet optional)
Weight of cabinet55Kg
Driving method1/4scan constant current
Frame frequency / Hz/S≥60
Refresh frequency / Hz/S600~2000
Brightness7000cd/m2
Operating temperature–25C°~65C°
Storage temperature–40C°~70C°
Operation humidity10%-90%
Storage humidity10%-90%
IP Rrating (Front/Rear) IP65/ IP54
Working vlotageAC220V / AC110V  ±10%
Grey scale/color depthdisplaying colors≥16.7M(synchronized); 14bits
Brightness adjustment256 levels of each color(manually)
Input signalRF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
Control systemlinsn/Colorlight/Nova(sending card,receiving cards and Hubs)
Average of non-failure life≥50,00h
Life span≥100,000h
Functionaless dot rate≤0.0001
Control distanceCAT cable: 100m;   Muti-mode fiber: 500m;  Single-mode fiber: 15km

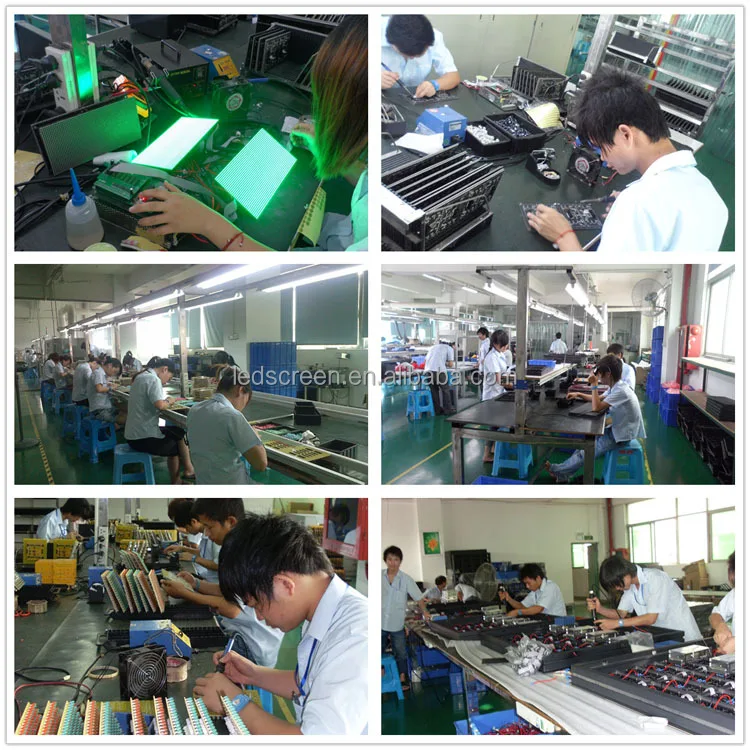

Advertising Outdoor LED Display Board, Advertising Outdoor LED Display Screen, Advertising LED Display Panel Picture 1:






Advertising Outdoor LED Display Board, Advertising Outdoor LED Display Screen, Advertising LED Display Panel Picture 2:






Features

1. High quality LED chip and high anti-static electricity capacity.

2. Large viewing angle and smooth displaying provide excellent visual effect from every angle. High brightness led DIP lights, the brightness is more than 7000cd/m2, and the wavelength range is ±1.5NM, same batch the LED brightness rate is 1:1.2, 130 wide viewing angle.

3. The integration of lamp and driving IC,together with with the multi-circuit structure,achievs evenly-distributed current,low power consumption and fast heat dissipation.

4. Ultra high brightness,low attenuation,high reliability and weather ability.

5.High contrast ratio. High refresh rate (3000HZ), high gray level (14bit), can support 16 data processing, the picture clear fluid.

6. scientific cabinet design, good compatibility.
While designing, we uphold the concept of energy efficiency and environmental protection.Using the standardized cabinet, the cabinet can be convenient for Installation and maintenance in different environment, meanwhile the light, thin cabinet reduces The shipping cost.


7. Top protective function
The cabinet has good moisture-proof corrosion-resistant function, so the screen can be use in the beach where the air has high moisture and high salinity. The frontage of the screen is IP65.





Trading Terms

1. Payment: T/T , 30% deposits before production,the balance to be paid before delivery. (other payment can be discuss with salesman )
2. Production lead time : 20-25days.
3. Sample is avaliable in short time.
4. Best shipping freight are quoted under your requests.
5. Shipping port: Shenzhen, Mainland China



Our Services

after-sales service.jpg

1. Your inquiry related to our products or prices will be replied in 24hrs.
2. Well-trained and experienced staffs to answer all your enquires in fluent English .
3. OEM&ODM, any your customized screen we can help you to design and put into product.
4. Distributoer ship are offered for your unique design and some our current models .
5. Protection of your sales area, ideas of design and all your private information .

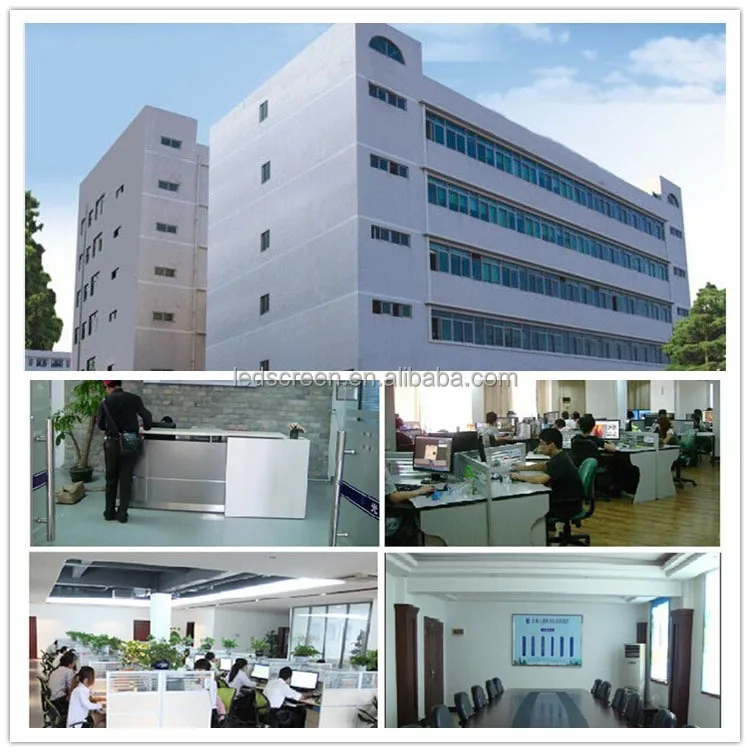

Company Information


PASSION LED was founded in the year 2004, a professional led display manufacturer with dedicated R&D, quality control production, marketing and Project Engineering service. All of our led display, led screen, led video wall, led display panel,led display screen,led curtain display, led dance floor, led floor, flexible led display can be redesigned to suit your exact requirements,we will be happy to discuss your sign needs, and develop a completely bespoke display solution. All our products are wlecomed to your inquiry.

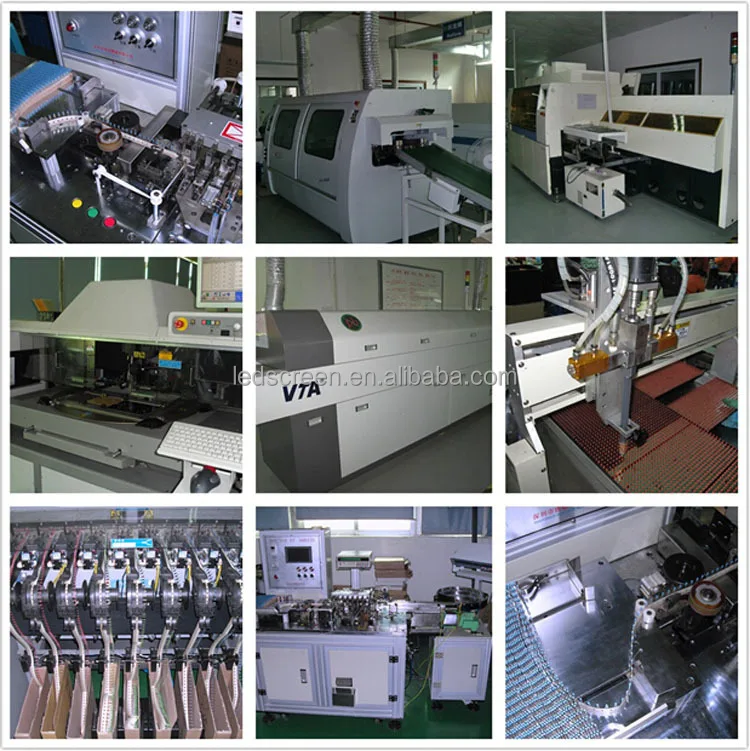

Factory Machine.jpg

The R & D technology and the design of PASSION series LED display are technologies work for human. Based on this point,PASSION constantly advance designing and developing new LED products is also for more convenient in application.


A good LED  display product which can be accepted and applied widely by market must follow the rule of high quality/low price,PASSION ultra-thin LED display is such kind of product,which is absolutely different from other ultra-thin LED display.We use ultra-thin LED power supply, new circuit design,new overall structure plan,new lightweight cabinet materials and possess the LED modules with independent intellectual property rights ... so they are not only high quality but also with low manufacturing costs,which make quick installation and easy transportation with low light possible.
