outdoor flexible LED mesh curtain for media facade

FOB Reference Price:Get Latest Price
US $1,000-1,200 / Pieces | 8 Piece/Pieces 8000USD (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
PASSION
Model Number:
NM4-37
Usage:
Outdoor
Tube Chip Color:
Full Color
Display Function:
Video
Pixels:
37.5mm
Screen Dimension:
0.3m*4.8m
Application:
outdoor and indoor
Color:
full color
LED chip:
Nationstar
Standard module weight:
10.5 kg/sqm;
Brightness:
5400CD/sqm
Resolution:
8*128
Transparency Rate:
55%
Max Power Consumption:
500 W/sqm
Refresh Rate:
1000Hz
IP rate:
65
Supply Ability
Supply Ability:
1000 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details
Flight case (road case)
Port
Shenzhen,Guangzhou, HongKong
Lead Time :
20~30days since the deposit arrival
Company Information


PASSION LED was founded in the year 2004, a professional led display manufacturer with dedicated R&D, quality control production, marketing and Project Engineering service. All of our led display, led screen, led video wall, led display panel,led display screen,led curtain display, led dance floor, led floor, flexible led display can be redesigned to suit your exact requirements,we will be happy to discuss your sign needs, and develop a completely bespoke display solution. All our products are wlecomed to your inquiry.

Factory Machine.jpg

The R & D technology and the design of PASSION series LED display are technologies work for human. Based on this point,PASSION constantly advance designing and developing new LED products is also for more convenient in application.


A good LED  display product which can be accepted and applied widely by market must follow the rule of high quality/low price,PASSION ultra-thin LED display is such kind of product,which is absolutely different from other ultra-thin LED display.We use ultra-thin LED power supply, new circuit design,new overall structure plan,new lightweight cabinet materials and possess the LED modules with independent intellectual property rights ... so they are not only high quality but also with low manufacturing costs,which make quick installation and easy transportation with low light possible.

Company Certification:

video-led-dance-floor

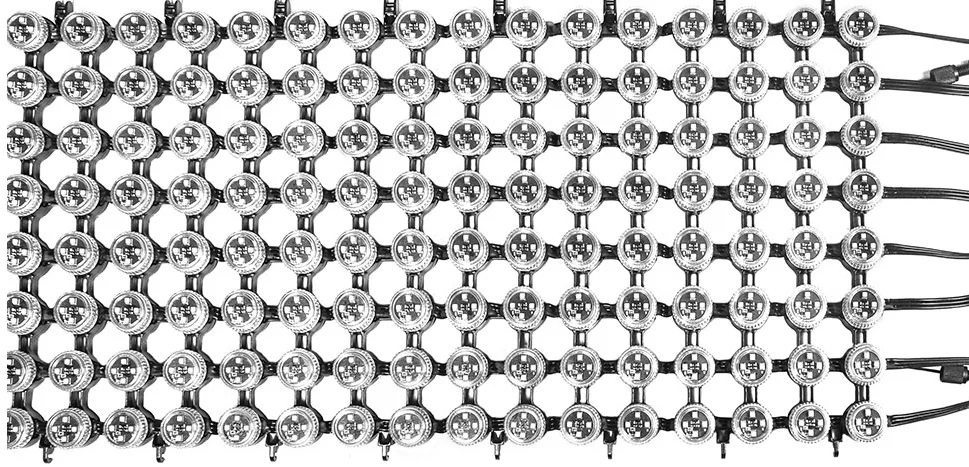

"STARRY" NM-37/56/75 - Flexible LED media facade, ultra light, super transparent, easy to install, Max 5000CD/sqm brightness and 85% transparency, size can be customized.

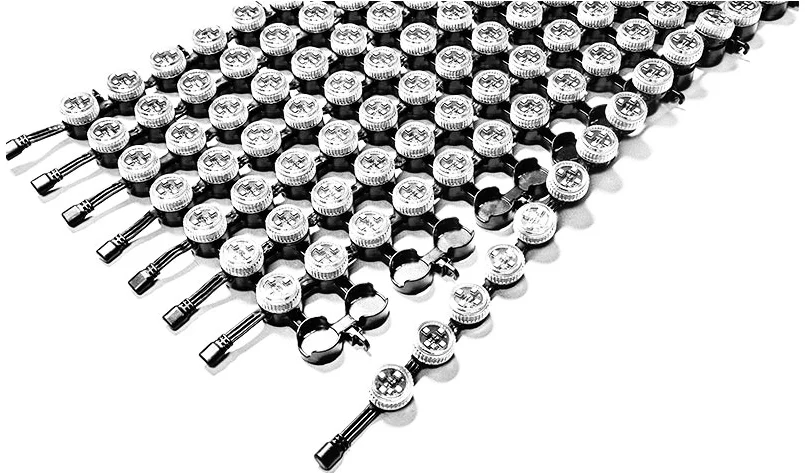

Ultra flexible design make it can be curved freely to achieve creative shapes like arch, circle, wave, customized size available.



High transparency maximizes the natural light get inside of the building, also ensuring the screen has great ventilation and wind-resistance function.



Fast inter-panel locks make it quick and easy to set up and dismantle large-scaled screen, no tools required.



Ultra light, a simple installation structure is enough to hold the screen. Panels can be well fixed by locking the following two pieces of connector on installation structure.

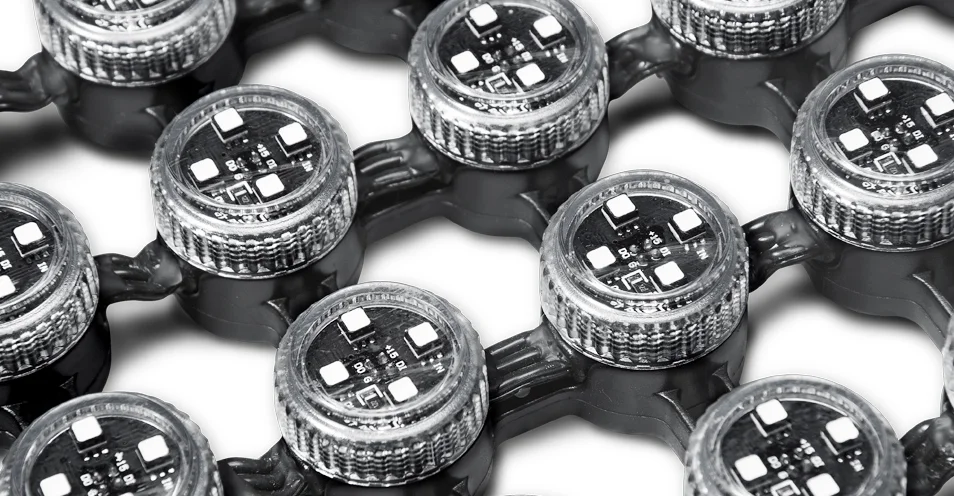

Both single LED strips and LED dot can be taken out for repair or replacement, which make service much more convenient.



  • Head and tail of the panel, with waterproof connectors. 7.jpg



NM4-37/56/75 Specifications
    Model No.    NM4-37/56/75
    Pixel Pitch    37.5mm / 56.25mm / 75mm (pixel pitch can also be customized)
    Pixel Configuration    4*SMD3535
    Panel Size     0.3m x 4.8m / 0.45m x 7.2m / 0.6m x 9.6m (Size can be customized)
    0.98' x  15.75' / 1.48' x 23.62' / 1.97' x 31.50'
    Brightness    5400CD/sqm / 2400CD/sqm / 1600CD/sqm  (Nationstar SMD3535)
    Transparency Rate    55% / 75% / 85%
    Weight    10.5 kg/sqm;  5.5 kg/sqm; 3.5 kg/sqm
    23.1 lbs/sqm; 12.1 lbs/sqm; 7.7 lbs/sqm
    IP Rating(Front/Rear)    IP65
    Refresh Rate    1000 Hz
    Scan Mode    Static
    Max Power Consumption    500 W/sqm; 300 W/sqm ; 150 W/sqm
    Color Processing    16 bit
    Viewing Angle(H/V)    140°/110°
    Operating Temperature    -20~40°C
    Main Power Source    AC 100-240V; 50/60Hz
    Input Voltage    15V DC
    Humidity    10~90%RH
    Life Time    >50,000 Hours
